KS-133

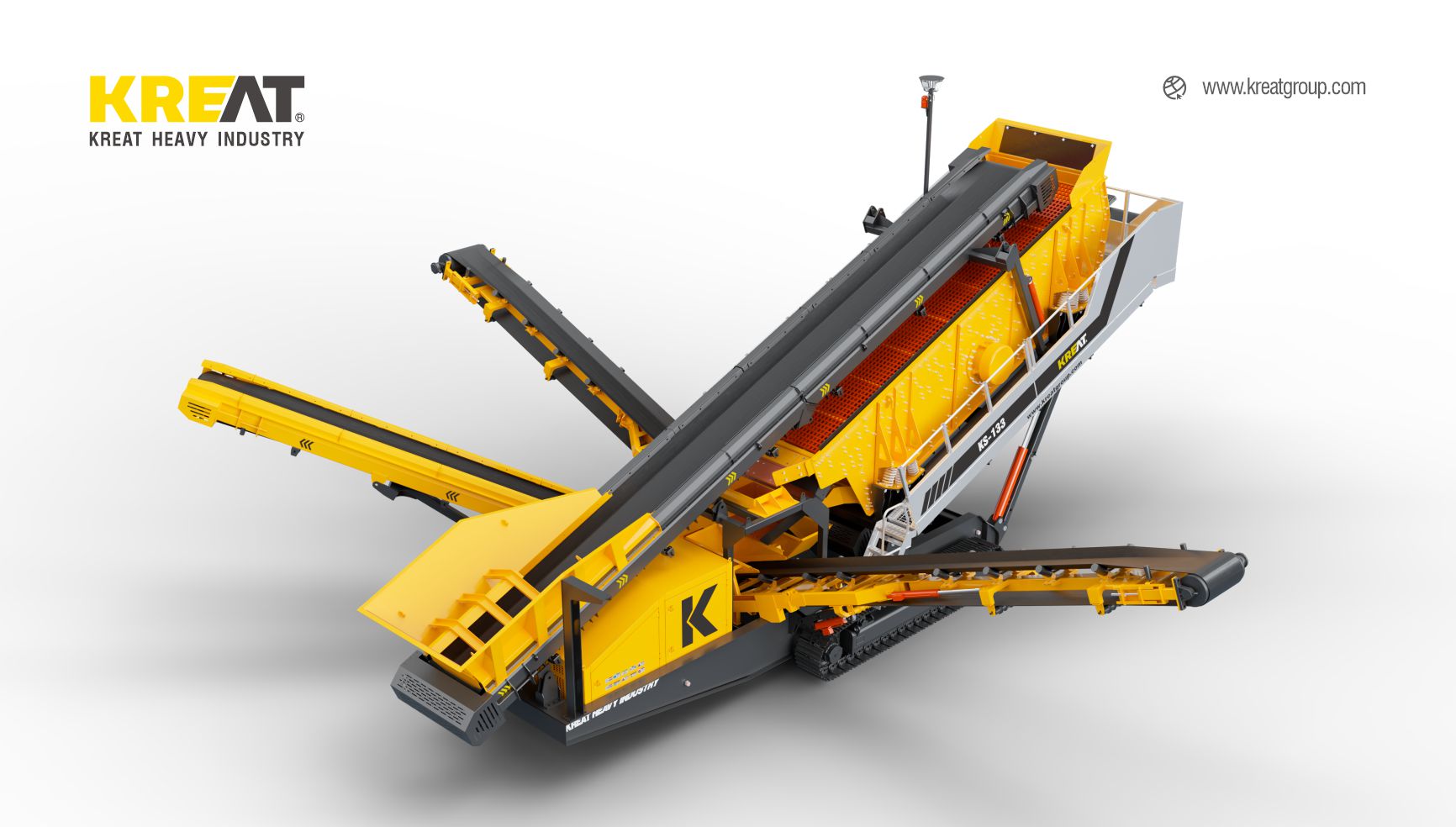

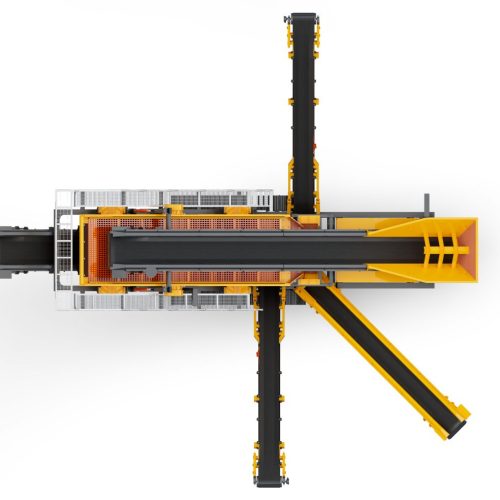

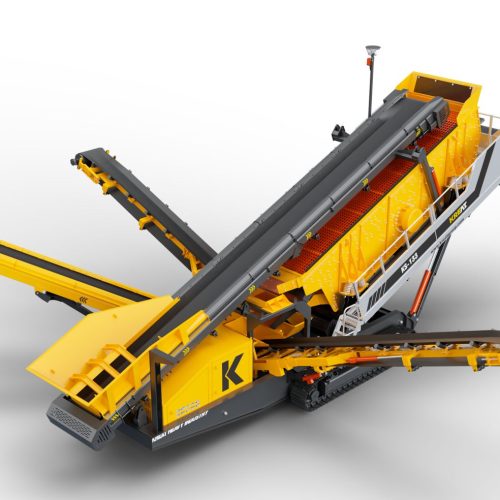

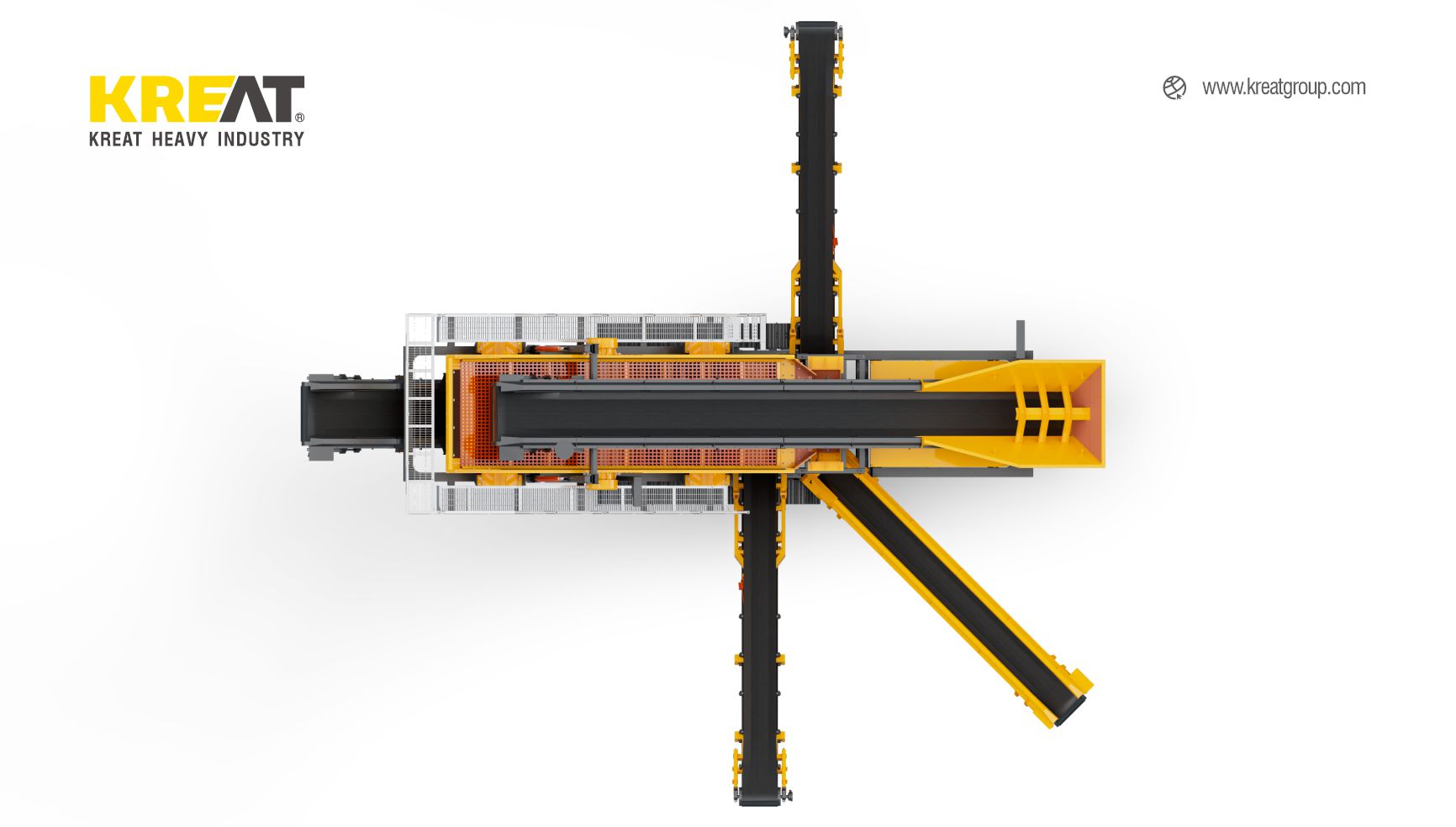

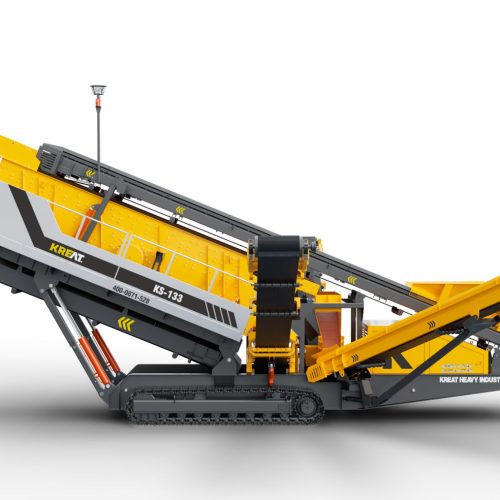

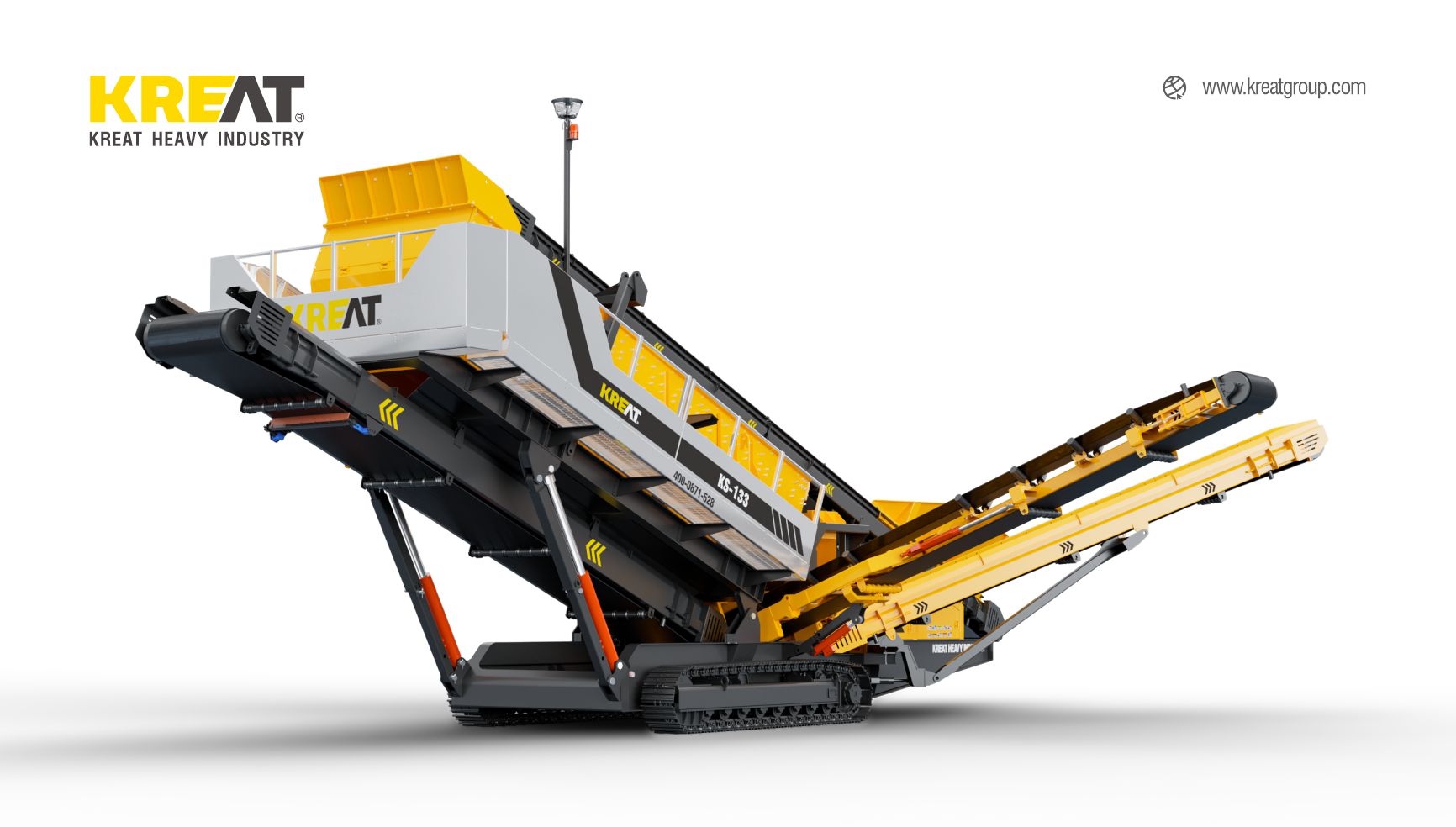

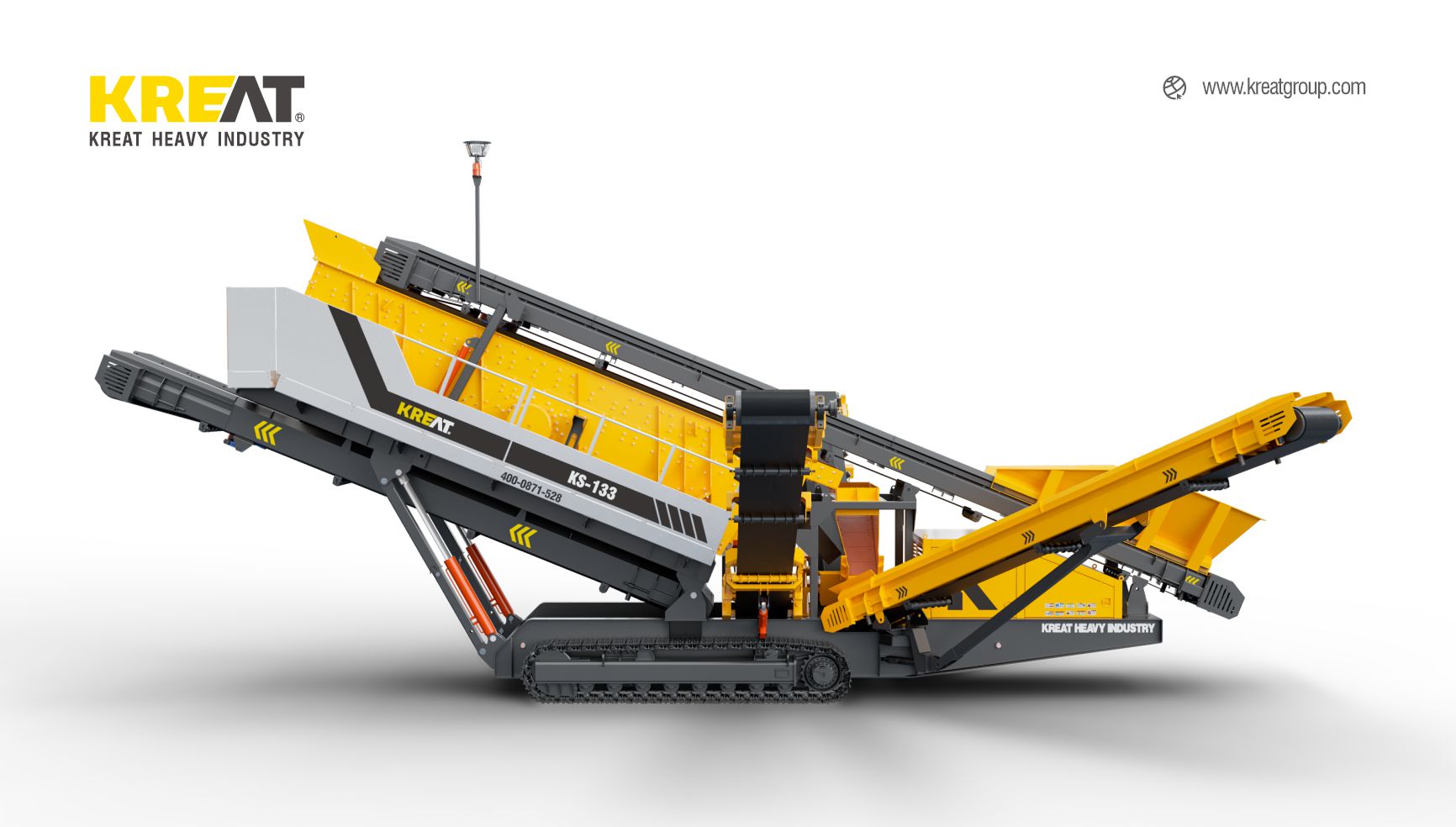

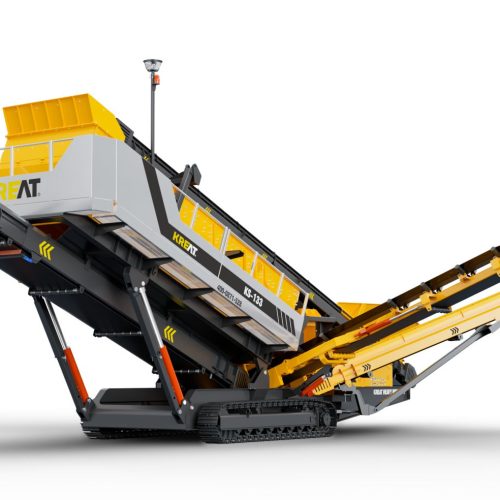

Tracks Mobile Inclined Screening KS-133
KREAT Tracks Mobile Inclined Screening KS-133 is a kind of high-efficiency screening equipment, which adopts crawler drive and walking mode, with advanced technology and complete functions. Because of its optimized unique dynamics design and intelligent process control system, it has a durable, stable and reliable high-efficiency crushing capacity, and is ideal for many independent screening or multi-stage Kairuite mobile crushing
Product Features
- High-efficiency screening: optimized design by dynamics, complete screening system, convenient and fast on-site installation and commissioning, and can be put into production quickly.
- Dynamic optimization design, complete screening system, convenient and fast on-site installation and commissioning, and can be put into production quickly.
- The three-layer design is widely used: the three-layer design of the screening machine can separate and process aggregates in up to 4 particle size ranges, and each finished material conveyor belt can be hydraulically folded to realize the transportation of the whole machine.
- Convenient maintenance and transportation: the vibrating screen can be lifted and lowered by hydraulic pressure, which is convenient for maintenance and replacement of the screen.
- It can realize fast transition operations: intelligent wireless remote control is used to control walking and folding, and the on-site movement is good, and it can adapt to various complex construction environments such as mountains and wetlands.
| MODEL |
KS-133 |
KS-133E |
KS-933H |
KSH-6203 |
KSZ-500H |
KSZ-600H |
| Output (tph) |
350 |
350 |
350 |
350 |
500 |
600 |
| Hopper Capacity (m³) |
2.3 |
2.3 |
8 |
0.7 |
6 |
6 |
| Screen box size (mm) |
6,500 × 2,000 |
6,500 × 2,000 |
7,179 × 1,565 |
6,100 × 1,930 |
3,470 × 1,395 |
5,000 × 1,550 |
| Number of Screen layer |
3 |
3 |
3 |
3 |
2 |
2 |
| Engine power (kW) |
WeiChai 103 / Cummins 113 |
WeiChai 125 |
Cummins 97 |
Cummins 93 |
Cummins 97 |
Cummins 97 |
| Max stacking height (mm) |
≤3,670 |
≤3,670 |
≤4,400 |
≤3,200 |
≤3,650 |
≤3,650 |
| Working size (mm) (L × W × H) |
14,550 × 14,180 × 7,020 |
14,700 × 15,730 × 7,100 |
20,100 × 19,700 × 6,600 |
20,950 × 14,711 × 4,440 |
14,800 × 12,700 × 3,850 |
14,800 × 12,800 × 4,900 |
| Transport size (mm) (L × W × H) |
16,030 × 3,850 × 3,830 |
16,410 × 3,850 × 3,830 |
19,900 × 3,500 × 3,860 |
19,400 × 3,830 × 3,860 |
13,500 × 3,100 × 3,550 |
14,800 × 3,600 × 3,850 |
| Total Weight (kg) |
31,000 |
32,000 |
38,000 |
38,000 |
31,000 |
35,000 |
