KI-1213RS

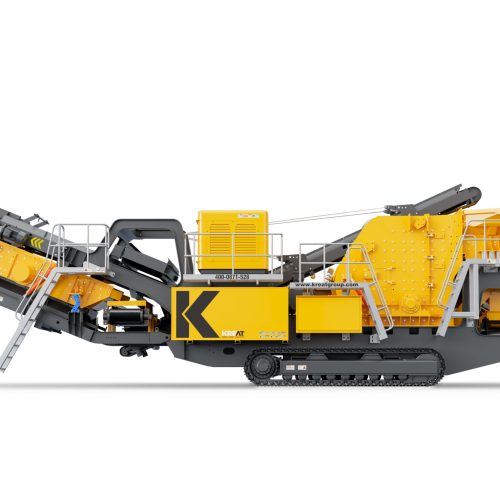

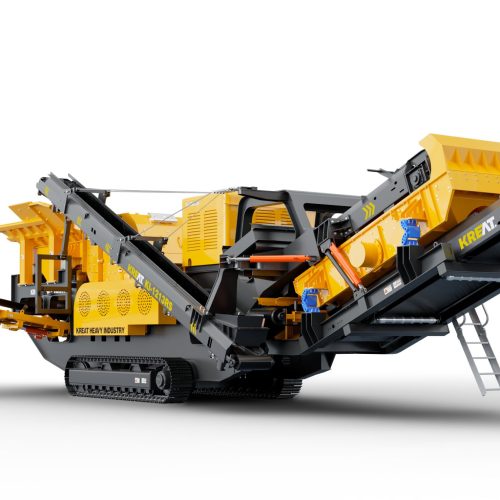

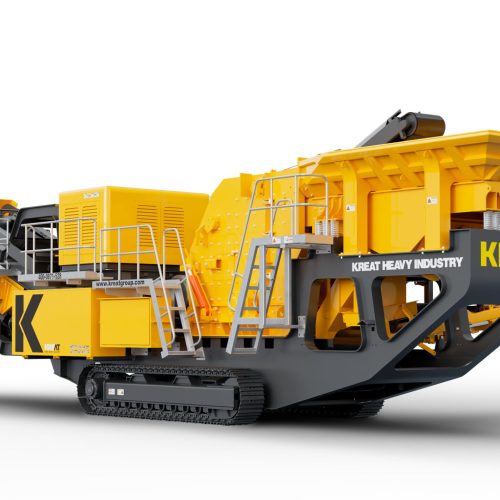

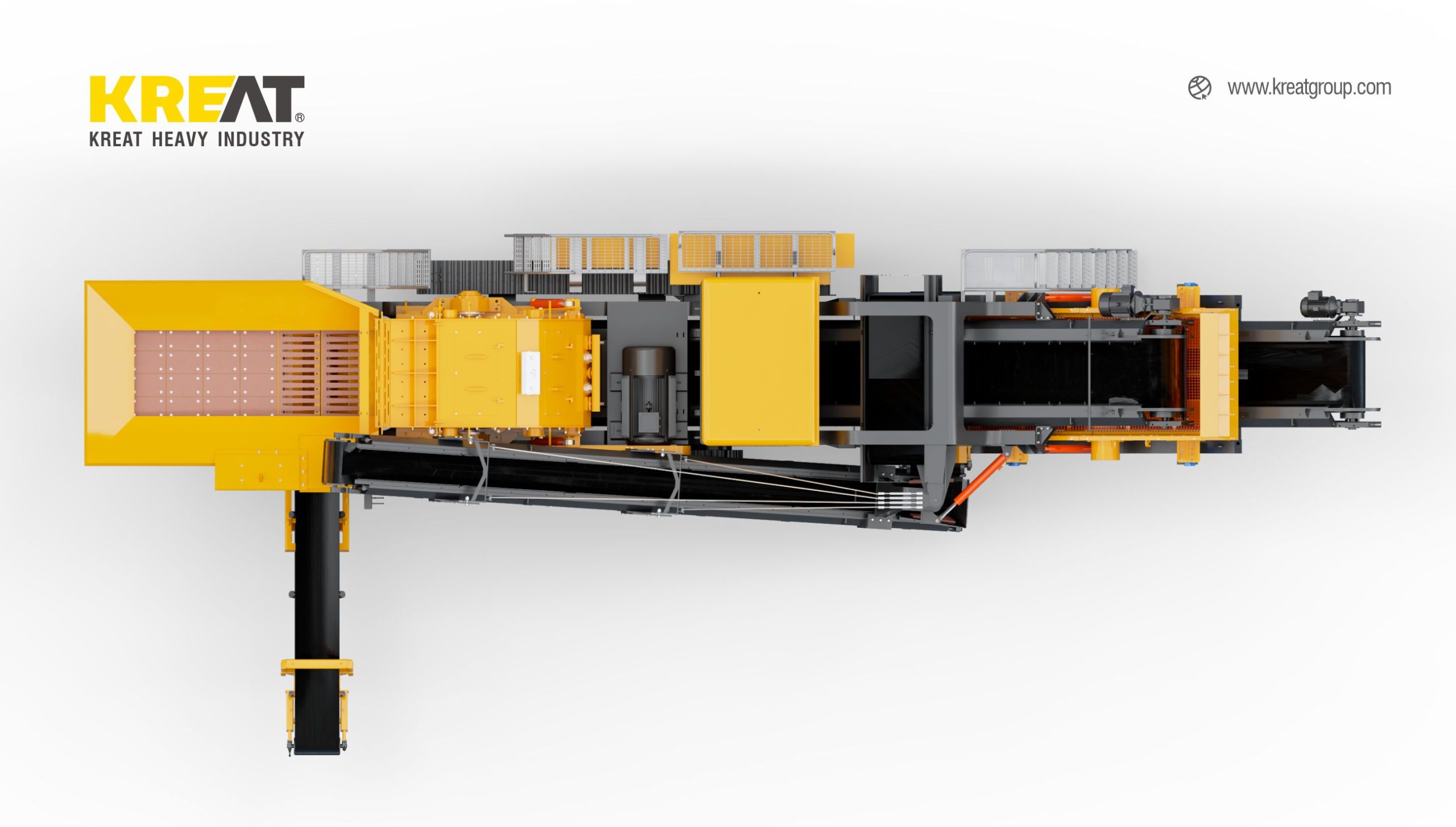

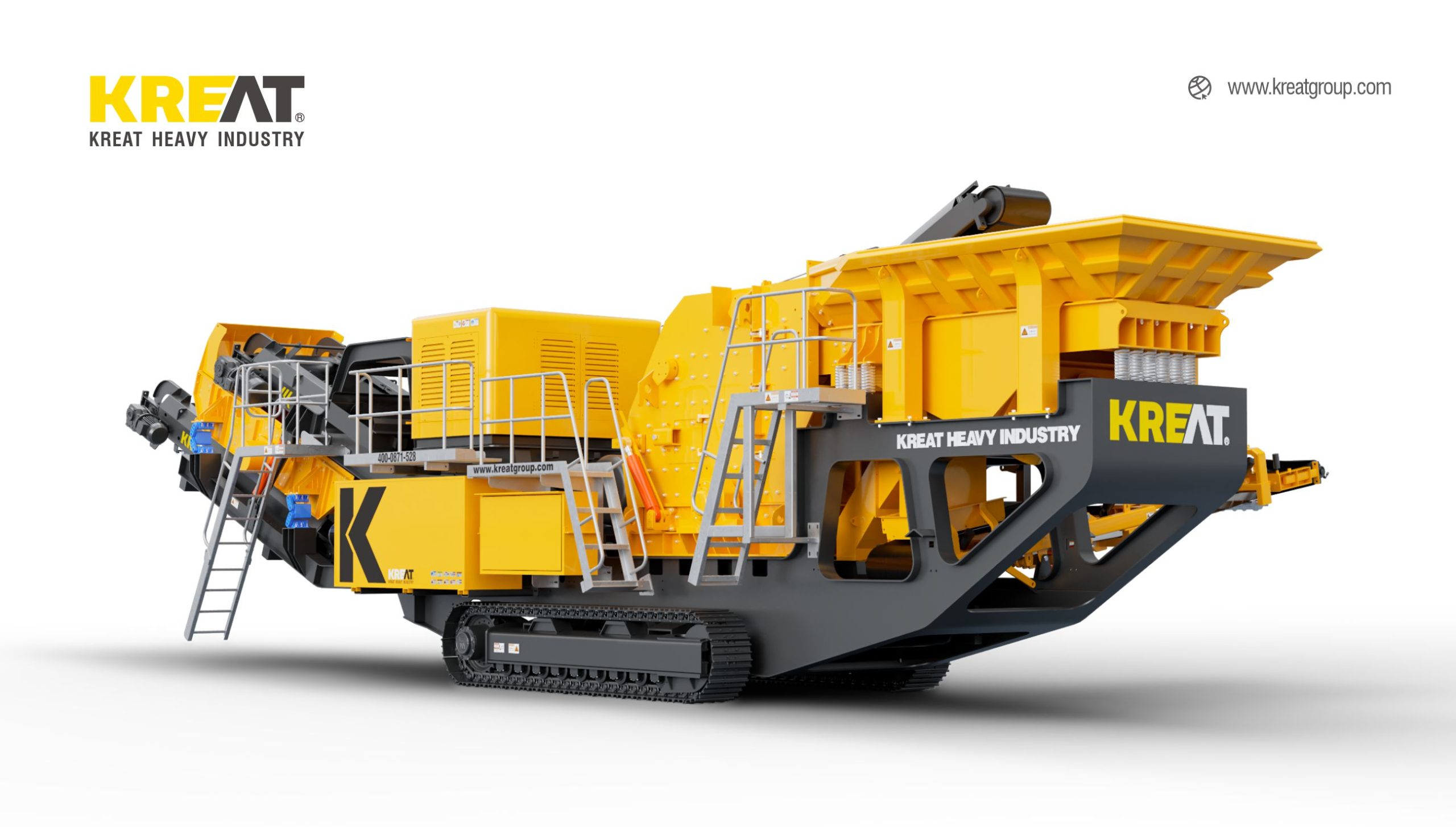

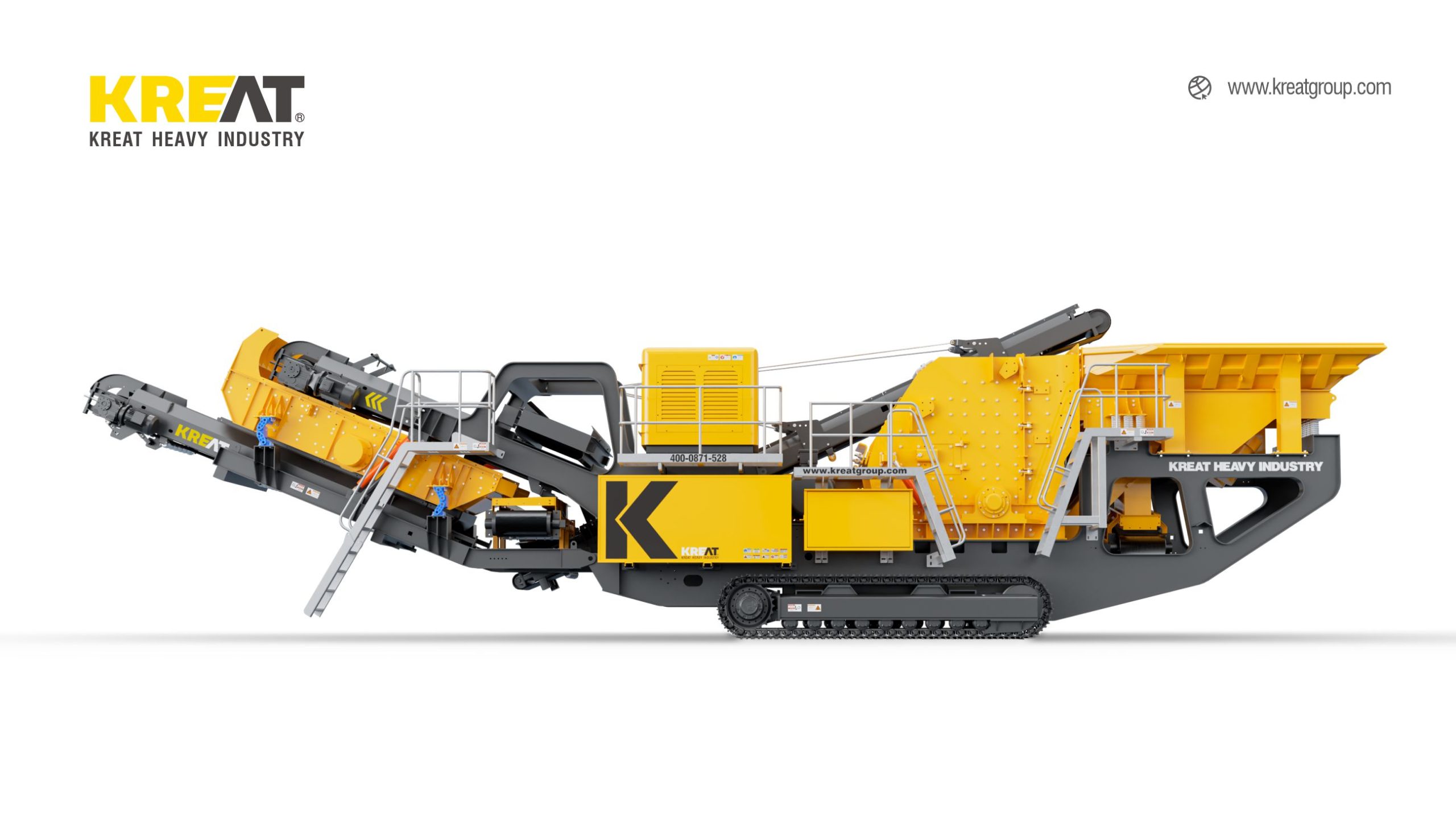

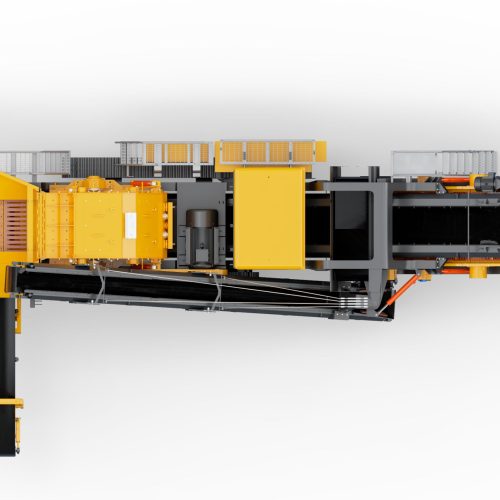

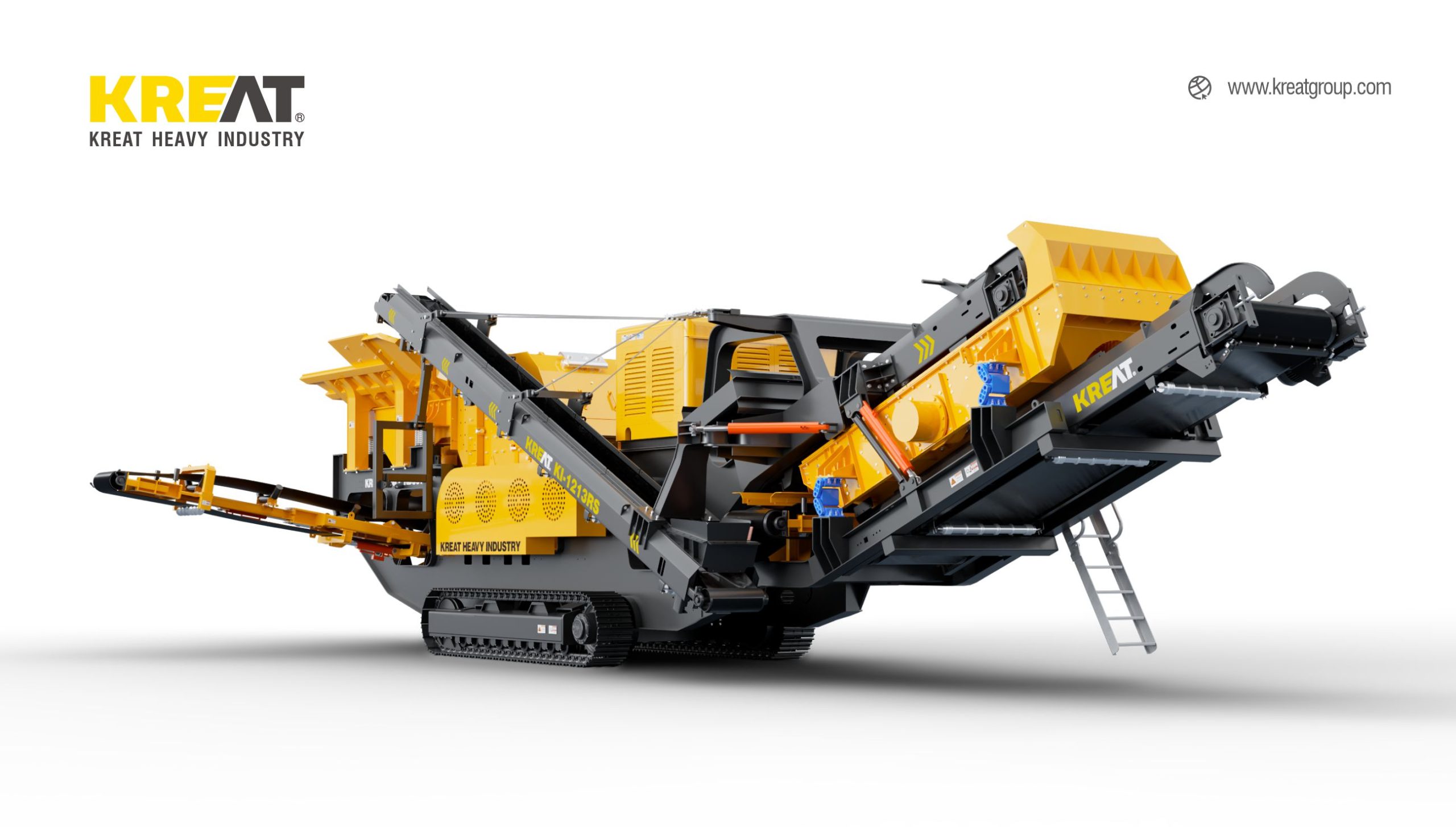

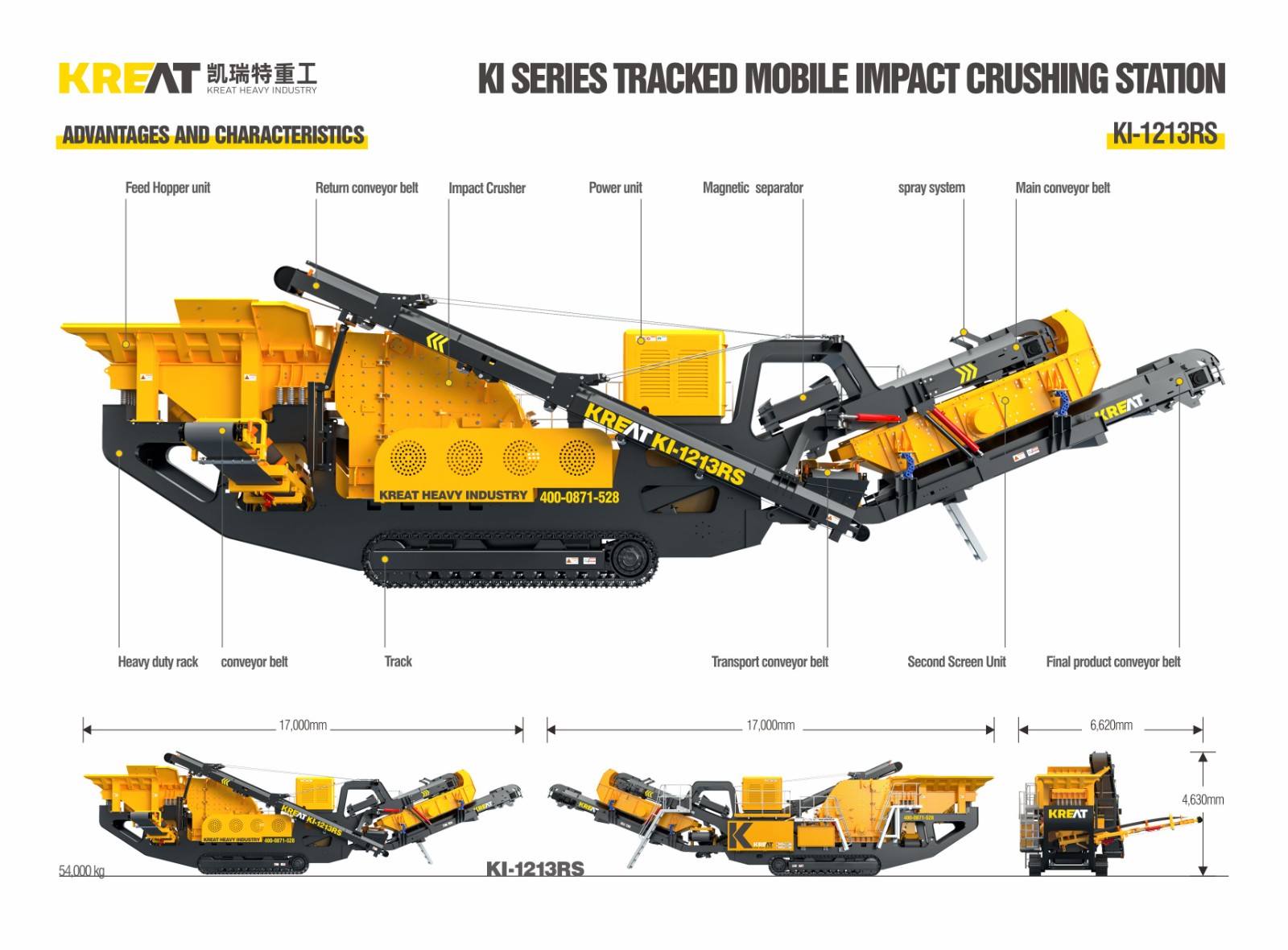

Tracks mobil impact crushing KI-1213RS
KREAT Tracks mobil impact crusher KI-1213RS is mainly used for the crushing of sand and gravel aggregates and construction waste. It has strong mobility and good on-site mobile passability. It can adapt to various complex construction environments such as mountains and wetlands. The crushed products are cubic, and the content of needles is almost The power supply mode without inner
Product Features
- Innovative control system: innovative and stable chain control system and frequency conversion system to ensure stable and high production of equipment.
- Stable equipment performance: the core components adopt well-known brands at home and abroad to ensure low failure rate and high stability of the equipment.
- Perfect equipment configuration: equipped with perfect dust removal system and iron removal system; improve working environment and applicability.
- Fast equipment transportation and maintenance: the equipment uses hydraulic drive to move, adjust and lift, which is convenient for transportation, fast in place and fast for maintenance.
| MODEL |
KI-1213RS |
KI-1213ERS |
KI-1214RS |
KI-1214E |
KI-1214DRS |
| Output (tph) |
360 |
360 |
500 |
500 |
500 |
| Hopper Capacity (m³) |
5 |
7 |
7 |
7 |
7 |
| Crusher |
CF250 |
CF250 |
KI-130 |
KI-130 |
KI-130 |
| Crusher power (kW) |
250 |
200 |
250 |
250 |
250 |
| Engine power (kW) |
WeiChai 103 / Cummins 113 |
WeiChai 450 |
WeiChai 103 / Cummins 113 |
WeiChai 450 |
Scania 364 |
| Max Feede Size (mm) |
700 |
700 |
700 |
700 |
700 |
| Working size (mm) (L * W * H) |
17,000 * 6,620 * 4,630 |
19,600 * 6,600 * 4,100 |
21,300 * 7,300 * 5,750 |
21,300 * 7,300 * 5,750 |
21,300 * 7,300 * 5,750 |
| Transport size (mm) (L * W * H) |
17,100 * 3,760 * 3,820 |
17,600 * 3,760 * 3,830 |
20,300 * 3,800 * 3,850 |
20,300 * 3,800 * 3,850 |
20,300 * 3,800 * 3,850 |
| Total Weight (kg) |
54,000 |
66,000 |
69,000 |
72,000 |
72,000 |
